Tail Light Brake Light LED Indicators For Yamaha MT-07 / FZ-07 / YZF-R3
Super bright LED tail light with built in turn signals for running/brake light and turn signals.
Easy plug and play installation with included sub-harness.
Tail light is equipped with Stop Alert function, in which 3 quick flashes are applied when the brakes are pressed.
Sequential LEDs flash in sequence in the direction you are turning or merging so there is no confusion which way you are going.
Premium quality injection molded housing and UV protected lens element.
Upgrade the brake light in the center and match with the driving light to make the color dazzling
Replacement for Yamaha YZF R3 R25 Y15ZR MT07 FZ07 LC150.
Specifications:
Driving lights - Red
Item type: LED Tail Light
Lens Color: smoked grey Shell
Material: plastic
Working voltage: 12V
Power: 0.35W
Current: 27.2mA
Waterproofing grade: IPX66
Driving lights: Blue / Red light (optional)
Brake light: Red light
Turn signal: Yellow light
Weight: 347g
Fitment:
Yamaha YZF R3 2015-2023
Yamaha MT07 2014-2017
FZ07 LC150.

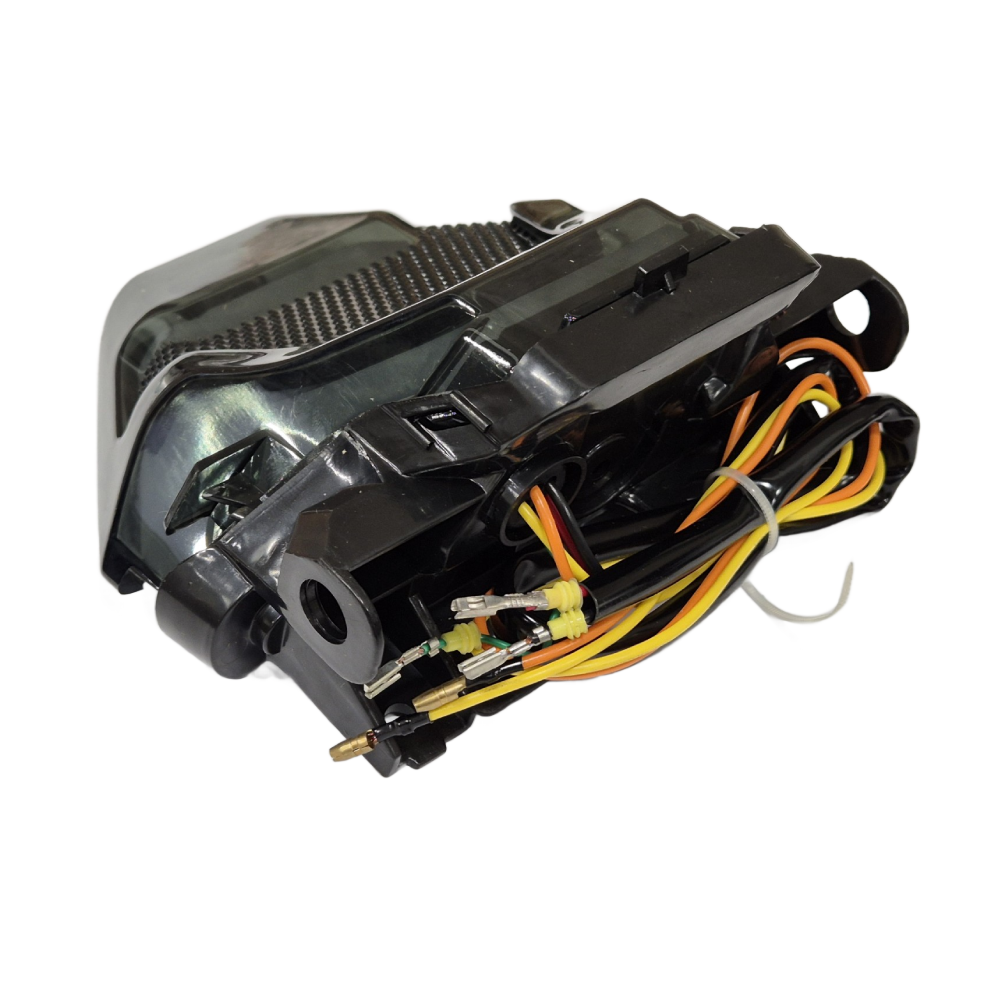

Wiring -
Black wire connected to negative pole
Red wire connected to driving lights
Green wire connected to brake light
Yellow wire connected to left turn signal
Orange wire connected to right turn signal
